Perfect Combination of Practical Technology Optical LED street Light

Model Number : EK-LDC16
उत्पाद का नाम: एलईडी स्ट्रीट लाइट
वाट्स की सिफारिश करें: : 50w 100w 150w 200w
Waterproof Index : IP66
भूकंपरोधी सूचकांक: IK08 IK09
Working Temperature(℃): -20-50
Surface Color : RAL9007 (available on request)
Contain Accessories : Complete finished street lights

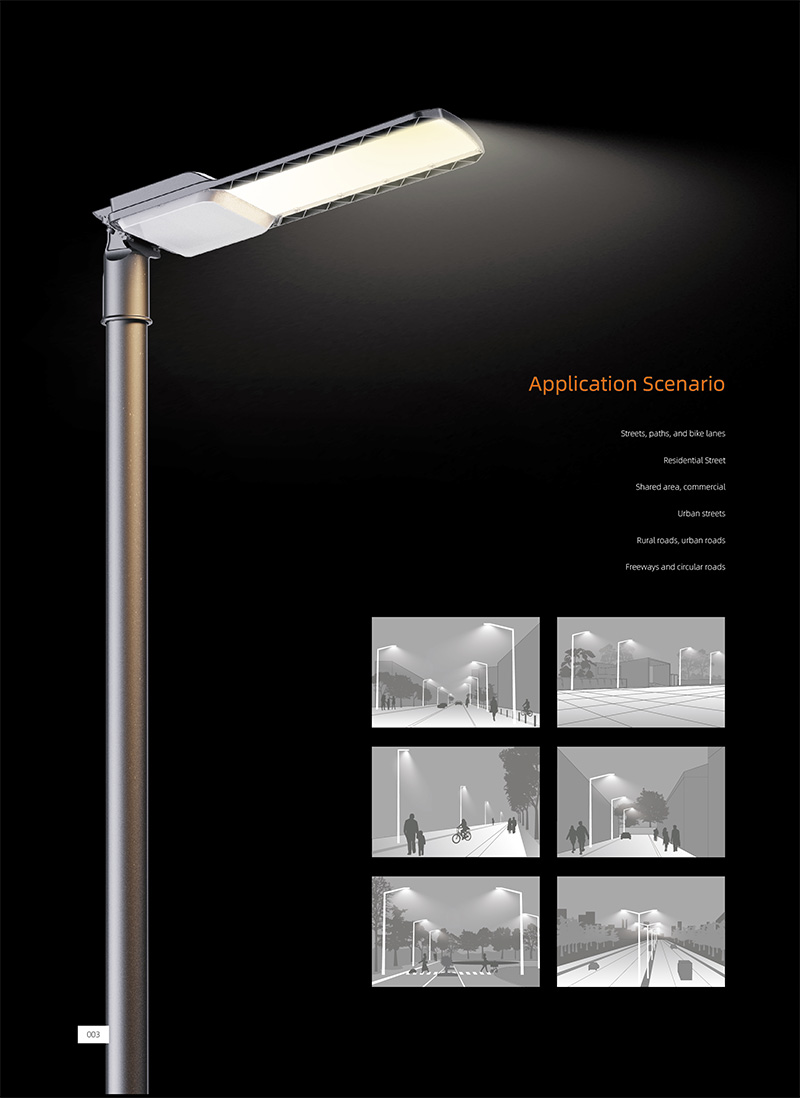

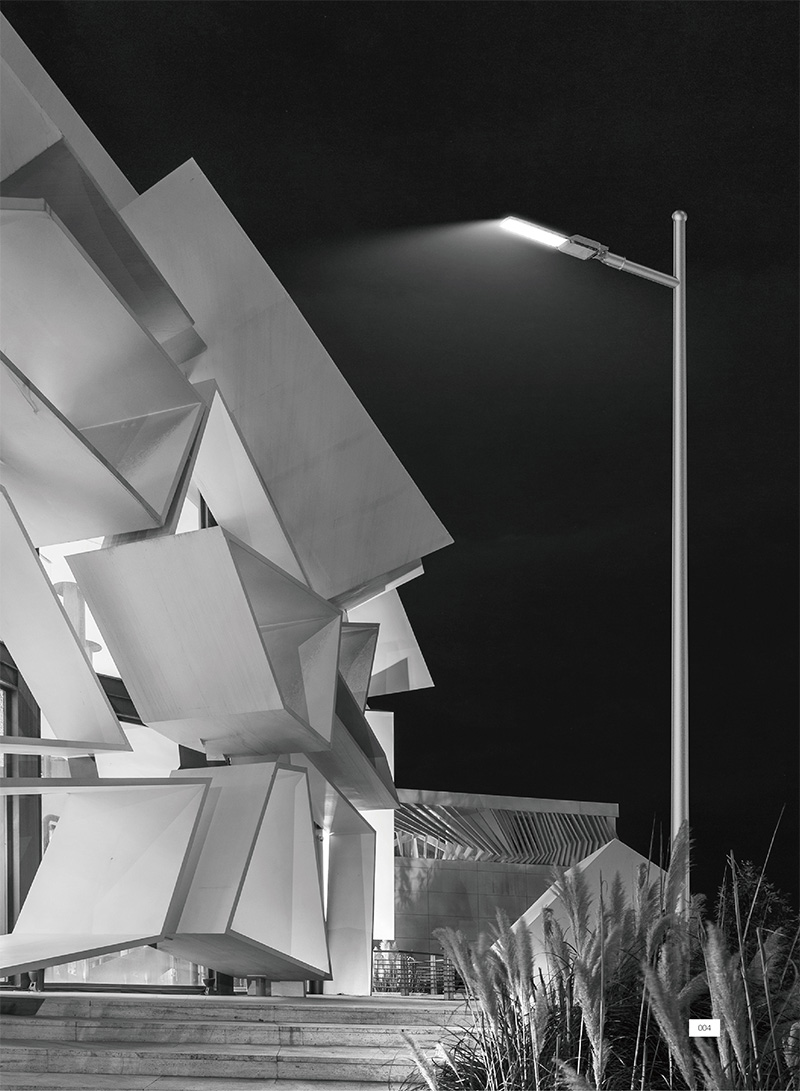

Application Scenario

  • Streets,Paths and bike lanes
  • Residential Street
  • Shared area, commercial
  • Urban streets
  • Rural roads,urban roads
  • Freeways and cicular raods

Technical Norm

General highlights

  1. Used for any outdoor lighting places such as roads, squares
  2. Working temperature: -30 。 C/+50 。 c

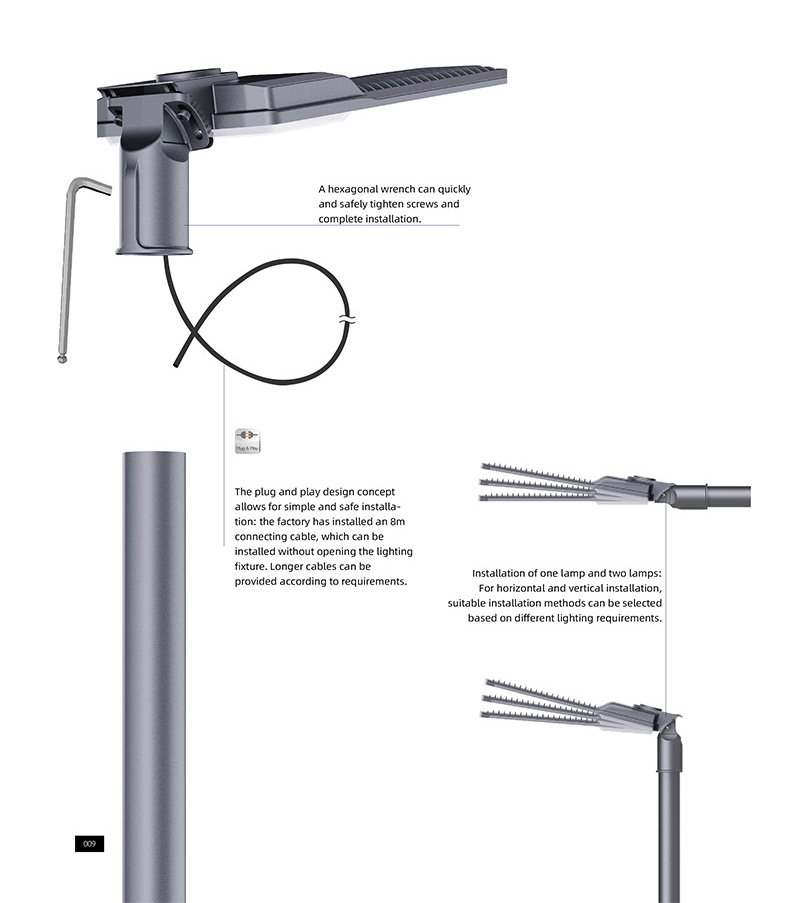

  3. Adopting buckle design for easy installation and maintenanceLumen
  4. Using high-quality chips
  5. Less light decay, long-lasting and durable
  6. Lamp poles with different calibers
  7. Excellent heat dissipation



Optical properties

  1. Different lens arrangements in different areas and installation
  2. Uniform light distribution
  3. Modular design of light source for easy replacement
  4. output(absolute metering): 100o0lm-400oolm
  5. Color temperature: 2200K-6500K
  6. Color rendering index:>70



Shell and Finis

  1. Corrosion resistant die cast aluminum casing Cancer-A Cancer-B
  2. Electrostatic powder coating
  3. Protection level: IP66
  4. Impact protection: IK09

Technical Parameter

Technical  Parameter
नमूनाEK-LDC16-50WEK-LDC16-100WEK-LDC16-150WEK-LDC16-200W
शक्ति50 डब्ल्यू100 वाट150 वाट200W
इनपुट वोल्टेजAC100-277V
आवृति सीमा50 हर्ट्ज/60 हर्ट्ज
ऊर्जा घटक＞0.95
संपूर्ण प्रकाश प्रभाव180lm/w
एलईडी जीवनकाल50000 ज
रेंडरिंग इंडेक्ससीआरआई70
रंग तापमान2200K-6500K
आई पीआईपी66
इंद्रकुमारIK09
ऑपरेशन तापमानमाइनस 30+50℃
भंडारण तापमानminus 20+60℃  10%-90%RH
लेंस सामग्रीपीसी लेंस
स्थापना ऊंचाई6-8mm6-8mm8-10 मिमी10-12 मिमी

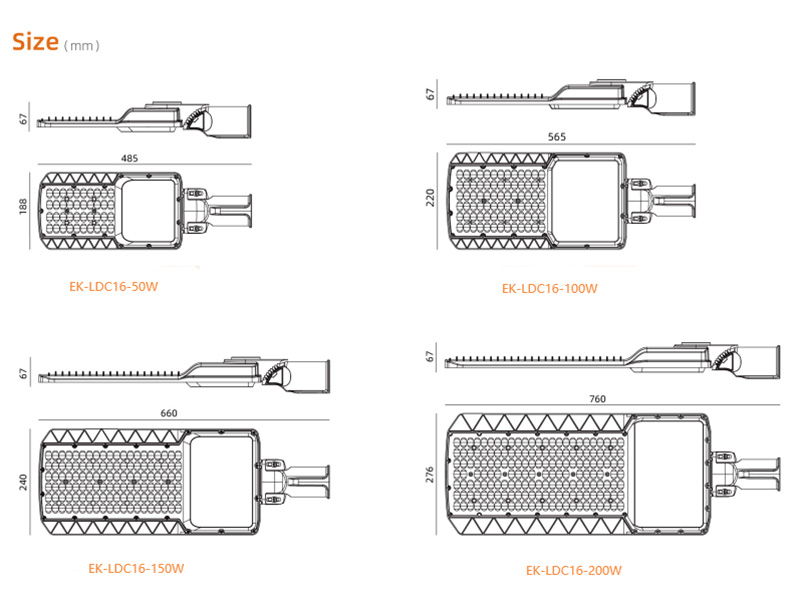

Size

Street Lamp Series

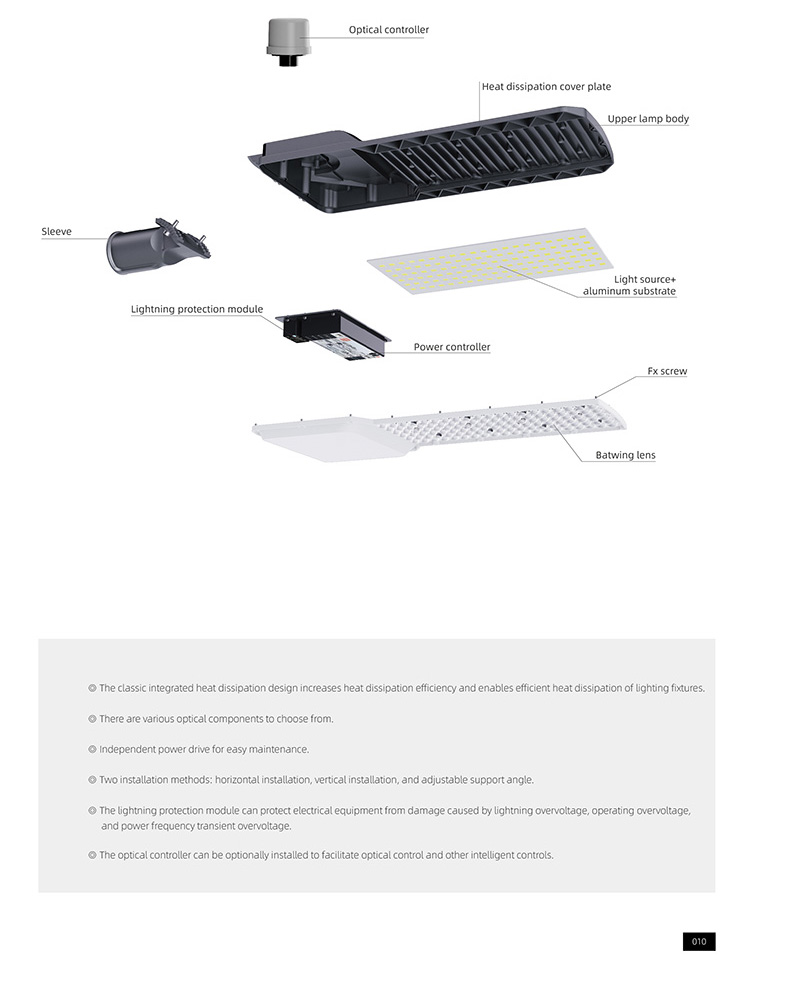

Strcture Display

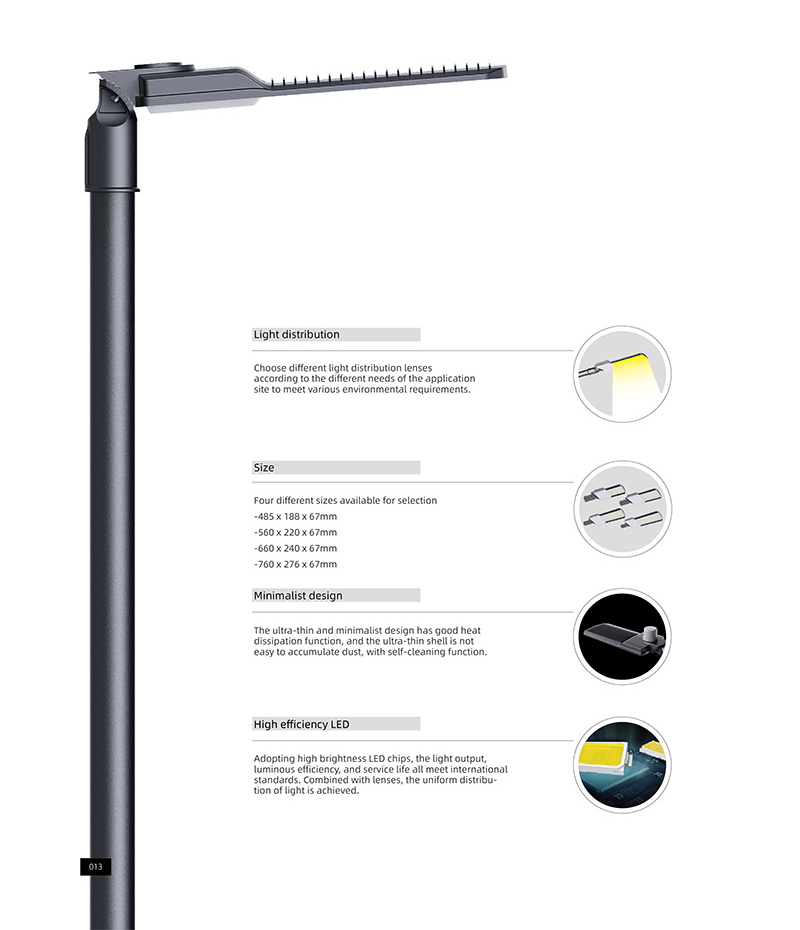

Detail Highlights

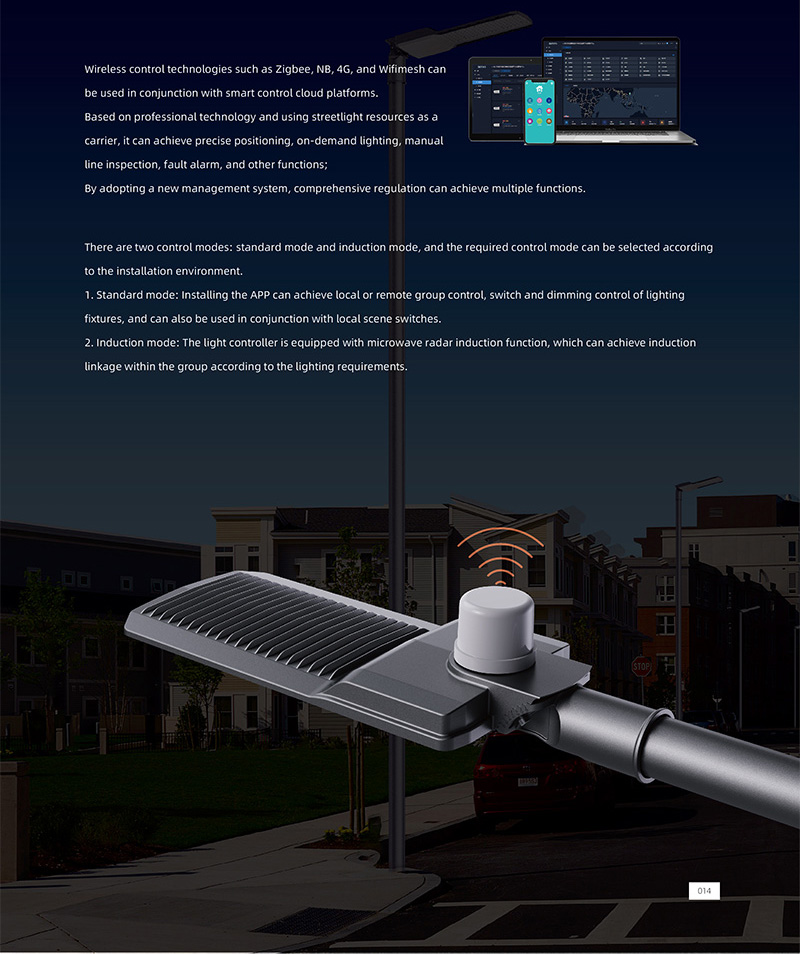

Intelligent Controller Design
